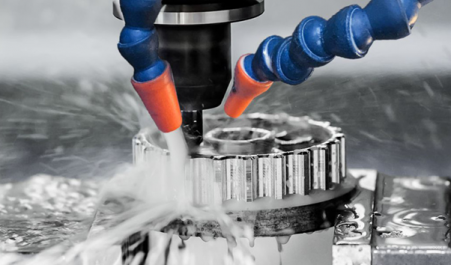

aluminum CNC machining-feature image

How To Manufacture Aluminum Reflectors With CNC Milling

Here is a guide to how to manufacture aluminum reflectors with CNC milling.


Automotive OEMs around the world are ditching dichroic reflectors for aluminum reflectors that are far more superior in every way. CNC machining has made it possible to create custom-designed, highly geometrical reflectors made out of aluminum for headlight, taillight, indicators, and other lighting components.

Aluminum Reflector -Meeting the Challenging Demands

Before the advent of rapid prototyping techniques, aluminum reflectors were only seen on expensive, higher-end cars as the complex design was difficult to manufacture. The challenging high precision requirement was difficult to meet. However, manufacturers now have numerous options to manufacture it tc.

Of all the different techniques, CNC milling has proved to be the best way to machine aluminum reflectors. It has given way to innovation and serious development in optical systems that have improved safety and comfort in cars. The aluminum reflector is far more superior to chrome or steel reflectors as they are easy to machine and conduct heat and light very well.

Why Prefer CNC Machining for Making Aluminum Parts

  • As CNC machines are supplemented with modern CAD design software, it provides for an efficient, error-free production that saves time as well as material costs when designing intricate car parts.
  • Since the entire process is automated, it increases the speed of mass production while maintaining quality, thus reducing the time to market.
  • CNC mills do not require additional labor apart from a skilled operator. This reduces labor costs and also human error.
  • The multi-axis linkage in CNC machines allows the tools to move in four or more directions, giving manufacturers the ability to achieve highly complex designs easily.

Trial Runs for Small Batches: Before entering mass production, manufacturers need to ensure that the design is flawless. Therefore, small batches are produced according to the designed blueprint, and the results are analyzed. Any required changes can be made quickly inside the CAM/CAD software, and a trial run can be done again to achieve the required result. The operator needs to configure the CNC mill according to the specifications to ensure maximum precision.

Once a favorable design is achieved, manufacturers can then enter mass production. This prototyping process saves a lot of time and resources. Various rapid prototyping techniques like Rapid Injection Molding and Urethane Casting are also used for low-volume prototype production.

Manufacturing Aluminum Reflectors with CNC Milling

  • Continuous 5-axis CNC machining provides great scalability, flexibility, and accuracy.
  • Ultra-precise optical patterns can be achieved down to R0.10mm radius.
  • Efficient toolpaths and optimized CNC programming meet custom design requirements.
  • Excellent surface finishing is achieved using EDM machining and professional polishing.

CNC Milling: Various cutting tools are used in this subtractive technique of milling away material to achieve the final design. Unlike traditional manual milling, the entire process is automated with CAM and CAD programs. This allows manufacturers to create top-notch aluminum reflectors with millimeter precision using 5-axis CNC machines.

EDM Machining: As the aluminum reflector lamps have complex structures with intricate geometrical details, CNC milling itself isn’t enough to process the entire part. The EDM machining process is used to obtain the required smoothness and remove any extra material from the surface or corners.

Post-Finishing Techniques: The final stage of production involves various finishing techniques like plating, polishing, deburring, etc. These processes are necessary to achieve a high-quality mirror gloss on the aluminum reflector to increase its aesthetic appeal.

Prototyping Aluminum Reflectors with Precise Machining

During the rapid prototyping or early manufacturing stage, various aluminum grades are tested to increase processing speed. With the right alloy, shorter polishing times and greater temperature control can be achieved. Loading tests can be performed by producing small batches, thus allowing OEMs to evaluate costs.

Aluminum CNC machining allows the prototype aluminum reflectors to have a real structure with real material. The reflectivity, glare suppression, diffusion, and other properties can be tested efficiently with a high-quality prototype to achieve high-luminous efficiency. Several mounting options can be explored on the aluminum reflector to reduce thermal transfer resistance. The part itself should be light yet stable with proper heat dissipation.

Ideal Requirements: Aluminum reflectors should ideally have 95% reflectivity, and the light diffusion and glare suppression must comply with the norms specific to the OEM country. The surface should be highly efficient in radiating and dissipating the black body radiation, ideally around 80% of it. Thermal conductivity should remain around 200 W/mK and shouldn’t interfere with the integrated wiring or chip placed behind the unit. The reflector itself must be durable enough to have a reasonably long lifespan as required by the manufacturer.



Using 5-axis Milling vs SLM for High-Quality Aluminum Reflectors

Although 5-axis CNC milling has become the industry standard for manufacturing reflectors and other automotive parts, some OEMs also consider SLM (Selective Laser Melting). SLM is an additive 3D printing technique that is very useful for producing complex internal parts. Although theoretically, SLM can be used to create any complex geometrical design, various designing rules need to be accounted for, which adds unnecessary steps to the production process.

However, SLM and other 3D printing techniques are more viable when manufacturing small batches or prototypes. As SLM is far more expensive than CNC milling for large or even medium-sized production, it is not a viable option for OEMs looking to set up large-scale manufacturing units. In comparison, CNC machining is much more cost-effective and provides a superior finish and detailing for aluminum reflectors as compared to 3D printing techniques. SLM lacks precision in comparison to CNC machines that offer one micrometer of mechanical accuracy on every axis.

Also, CNC machines outperform 3D printers as the former doesn’t require any additional steps to complete the design. The subtractive speed offered by the CNC aluminum mill is far more cost-effective and attractive for manufacturers requiring ‘like-for-like’ part production.
