Find out about Standard Rack mount patch panel – Unisol Communications

Standard Rack mount patch panels composed in 1U, 2U, 4U sizes. These Rack mount patch panels can sort out, ensure and oversee fiber optic links, joints, and connectors. There are three distinct sizes accessible in Standard Rack mount patch panels.

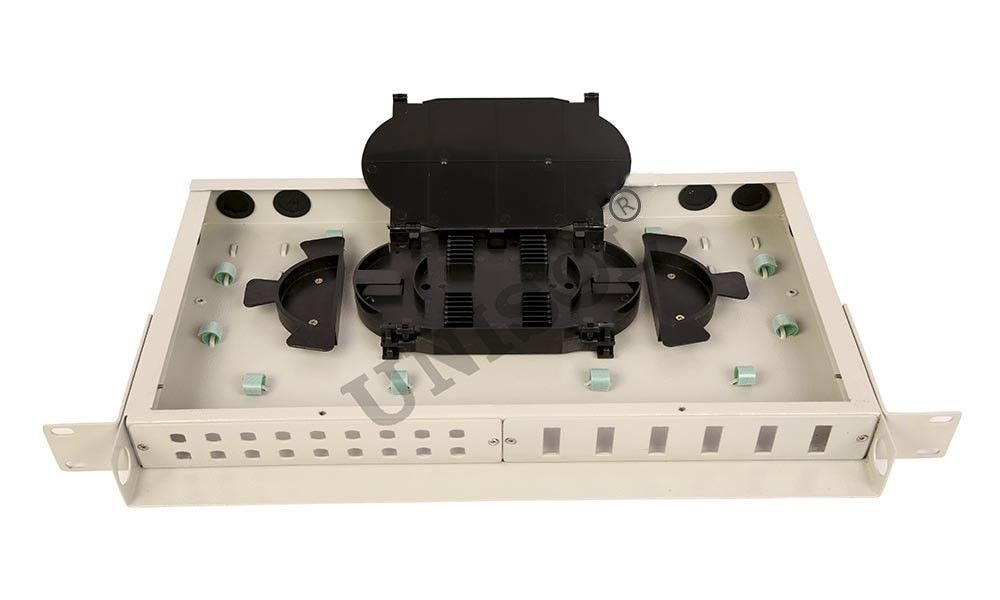

Standard 1U Rack mount patch panel

• Rack mount patch panel holds the fiber on a level plane and resembles a cabinet.
• This 1U Rack mount patch panel holds up to 24-48 port.
• Rack mount arrangement of walled in areas is the ideal decision where some fiber network required inside the rack.

Standard 2U Rack mount patch panel

• This Rack mount patch panel holds up to 48-96 port.
• It is a decent strategy or decision since it can assist you with organizing and associate the fiber optic connections, and it can shield the links from harm.

Standard 4U Rack mount patch panel

• This Rack mount patch panel holds up to 96 port.
• These Rack mount patch panels assume a vital key part in the field of fiber correspondence organize in the Central workplaces (FTTx), Data focuses and Telecommunications with more prominent security and flexibility.

• Unisol^® Rackmount Fiber optic patch panel is an integrated unit for fiber management. It will provide the complete protection of equipment and perform to fix and manage the fiber optic cables. There are three main functions in Rack mount series.
• These patch panels are fixing and managing the fiber optic cables inside the box.
• These panels support pigtail splicing or direct termination of fibers as well as sufficient space to store excess cable and pigtail routing.
• For interface management, a detachable adapter panel provides flexibility to interchange as per customer desire and gives quick access or approach to connect the Optoelectronic device. These enclosures can be used to provide some fiber connectivities and safety.

UNISOL^® Fiber rack mount patch panel provide cross-connect and interconnect capabilities for splicing & terminating OFC cables, pigtails in the fiber access network. Rack mount din rail and splice enclosures in data cabinets are available pre-loaded with any connector interface required. These 19-inch Fiber enclosure are ideal for high-density LAN interconnect or cross-connect patching. Unisol’s Highly reliable Fiber patch panels offering user-friendly features that take fiber patching to next level. Our rack mount fiber patch panels are designed based on hundreds of customers' feedback & almost two decades of installation experience of our own expert team. Fiber Optic Patch Panel is designed with innovative features that make installation and troubleshooting of fiber optic connectivity faster, easier and more cost-effective. These fiber panels are designed for 19” rack mounting with a detachable two-panel model.

Features:

• MS/Aluminum housing with seven Tank process powder coating.
• Suitable for 19’’Rack mount Applications
• Replaceable panel for SC/ST/LC/FC type couplers.
• Can manage adapter panel for maximum 48 SC/48 LC in 1U size
• Capable of storing up to three meters of 900-micron tight buffered fiber cable
• Allow a maximum six cables entry.
• Patch or fusion splice field termination standard.
• High impact resistance splice tray & cable spool for fiber & pigtail routing
• Accessory kit includes mounting ear, cable gland, cable ties and screws

Specifications:

Applications:

• Indore Premise Networks
• Central offices (FTTx)
• Data Centers
• Telecommunication Networks
• Security Surveillance Applications
• Process Automation & Control Systems
• Power Systems & Controls
