Industrial Automation and Applications of Din rail patch panel – Unisol Communications

Din rail patch panels are used in industries as it has a compact and rugged design case.

• Din rail patch panels are the perfect choice for terminating fiber data cables in economical series of enclosures where the expense of an outdoor enclosure is not desired.
• For active equipment, Din rail patch panels keep the patching nearby and in the cabinet of cable management, it serves and minimizes.
• These Din rail patch panels are perfect for the transformation of outdoor and indoor related cables without the need to install an entire rack enclosure or panel system.

Din Rail fiber optic patch panels play an important role in industrial applications.

Unisol Din rail patch panels used in Power System & Control Systems, CCTV & Surveillance Applications. Outside plant, Mining & Military, Road & Rail, Ship & offshore, Transmission boxes for a substation. CCTV traffic monitoring equipment. Machine Building, Transportation, Alternative Power, Generation like Solar, Windmill, Power Transmission & Distribution, etc.

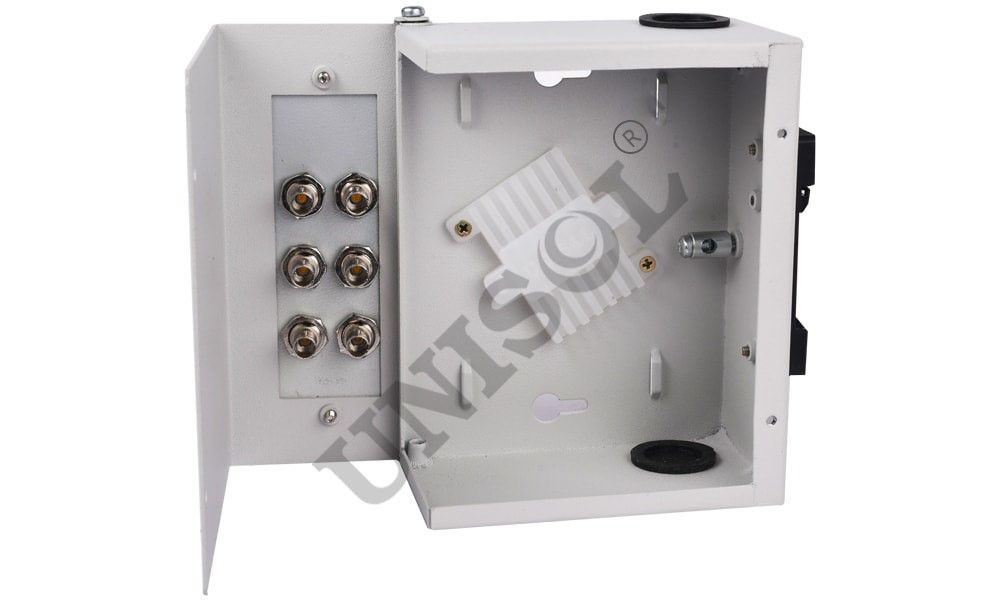

• Fiber optic patch panel which can mount on the standard 35mm Din rail frame is called Din rail patch panel. These patch panels are suitable for mounting Din rail panels where there are space constraints inside PLC’s. Din rail patch panel is compact and can mount in a cabinet with other Din rail equipment.
• Din rail mount enclosures are suitable to install in substation automation networks. Din rail patch panel is used to provide a maximum number of fiber connections in a minimal footprint.
• The industrial design makes it highly suited for use in Machine Building, Transportation, Alternative Power Generation, Power Transportation & Distribution, and Oil & Gas markets, as well as more general use in the enterprise, buildings, and other applications.
• Din rail patch panel used in CCTV traffic monitoring, toll systems and environmental monitoring equipment where these can secure in small wayside cabinet backplane or side panel. The patch panel can load with a variety of adapters like ST, SC, FC, and LC.

• Din rail mount enclosures are suitable to install in substation automation networks. Din rail patch panel is used to provide a maximum number of fiber connections in a minimal footprint.
• The industrial design makes it highly suited for use in Machine Building, Transportation, Alternative Power Generation, Power Transportation & Distribution, and Oil & Gas markets, as well as more general use in the enterprise, buildings, and other applications.
• Din rail patch panel used in CCTV traffic monitoring, toll systems and environmental monitoring equipment where these can secure in small wayside cabinet backplane or side panel. The patch panel can load with a variety of adapters like ST, SC, FC, and LC.
• These patch panels are suitable for mounting Din rail panels where there are space constraints inside PLC’s. Din rail patch panel is compact and can mount in a cabinet with other Din rail equipment.

features:

• Compact size perfect for limited space enclosures
• MS/Aluminum housing with 7 tank process powder coating
• Suitable for DIN-Rail and surface mount applications
• Replaceable panel for SC/ST/LC/FC type couplers
• Allow a maximum of 2 cables entry
• Patch or fusion splice field termination standard
• Splice holder for pigtail splicing
• Because of its compact and ruggedly designed case, it is suitable for industrial applications.
• Available with metal DIN-Rail mount for Industrial high-temperature conditions and applications

applications:

• Oil & Gas Industries
• CCTV & Surveillance Applications
• Rail Signalling & Control Applications
• Process Automation & Control Systems
• Power Systems & Controls

specifications:
