Brief explanation about Mini Rackmount patch panel – Unisol Communications

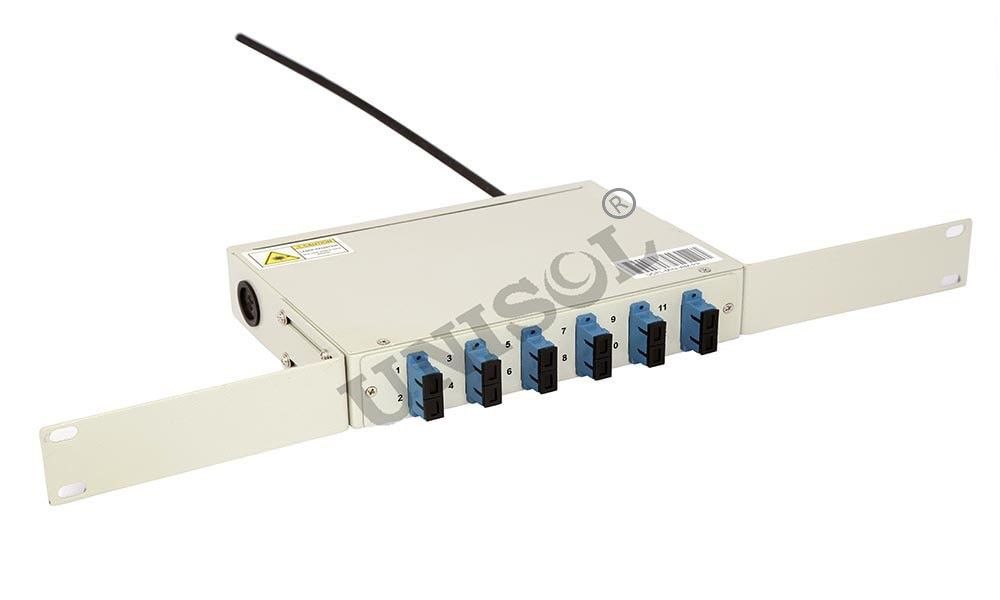

The mini Rackmount patch panel is reasonable for backbone fiber optic cable termination. Intended to support Fusion splicing or direct fiber termination. The device incorporates a splice tray for fusion splicing. It is reduced in the estimate and reasonable for mounting in 19″ Rack outline applications.

Mini Rackmount patch panel gives cross-associate and interconnects abilities for splicing and terminating OFC cables, pigtails in a fiber access network. Rackmount patch panel in data cabinets is accessible pre-stacked with any connector interface required. These 19″ rack mount panels are perfect for high-thickness LAN interconnect or cross-interface patching.

Unisol’s Highly solid Mini Rackmount patch panels offering easy to understand highlights that take fiber patching to the next level. Mini Rackmount patch panel can be stacked with an assortment of adapters like ST, SC, FC, and LC.

UNISOL^® Fiber rack mount patch panel is suitable for backbone fiber optic cable termination. Designed to support Fusion splicing or direct fiber termination. The device includes a splice tray for fusion splicing. It is compact in size & suitable for mounting in 19” Rack frame applications. Mini rack-mount enclosure provides cross-connect and interconnects capabilities for splicing & terminating OFC cables, pigtails in a fiber access network. Rackmount fiber optic patch panels in data cabinets are available pre-loaded with any connector interface required. These 19" rack mount panels are ideal for high-density LAN interconnect or cross-connect patching. Unisol’s Highly reliable Mini Fiber patch panels offering user-friendly features that take fiber patching to the next level. Mini Patch Panel can be loaded with a variety of adapters like ST, SC, FC, and LC.

• The fiber patch panels that are designed to climb in a 19-inch rack frame to provide cross-connect and interconnect capabilities for splicing & terminating OFC cables, pigtails in fiber access network called Rack mount LIU.
• Rack-mount Fiber optic patch panel is an integrated unit for fiber management. It will provide the complete protection for terminated/spliced fiber cable and perform to fix and manage the fiber optic cables. These 19-inch Fiber enclosures are conceptual for high-density LAN interconnect or cross-connect patching.
• Rackmount LIU designed with innovative features that make installation and control the damage of fiber optic connectivity at high speed, more comfortable and more conservative or cost-effective. These enclosures in data cabinets are available pre-loaded with any connector interface like SC, ST, FC, LC & MTRJ.
• Rackmount LIU used in Indore Premise Networks, Power Systems & Controls, Data Centers, Central Office (FTTx), Telecommunication Networks, Security surveillance.

• Unisol^® compact size miniature patch panel accuses very small space where there is space constraint inside the rack & suitable for mounting in 19” Rack frame applications.
• These devices are designed to support fusion splicing or direct termination of fibers where backbone fiber cables have to be terminated.
• For splicing and termination of OFC cables, these patch panels provide cross-connect and interconnect capabilities.
• These 19" rack mount panels are ideal for high-density LAN interconnect or cross-connect patching.
• Miniature Patch Panel can be loaded with a variety of adapters like ST, SC, FC, and LC.

Features:

• Compact size perfect for limited space enclosures.
• MS/Aluminum housing with seven Tank process powder coating.
• Suitable for 19” Rackmount applications.
• Replaceable rack mount panel for SC/ST/LC/FC type couplers.
• Allow a maximum 4 cables entry.
• Patch or fusion splice field termination standard.
• Splice holder for pigtail splicing.
• It can be used as a 24 port patch panel using LC/SC Duplex couplers.

Specifications:

Applications:

• Indore Premise Networks
• Central offices (FTTx)
• Data Centers
• Telecommunication Networks
• Security Surveillance Applications
• Process Automation & Control
• Systems
• Power Systems & Controls
