Fiber optic patch panel & their details – Unisol Communications

Fiber optic patch panels are also called fiber distribution panel. It is used to terminate the fiber optic cable and provide the connection to individual spliced fibers. Besides, Fiber optic patch panels can create a secure environment for exposed fibers, housing connectors and splice units.

Design

Unisol communications designed to provide the product to the customer based on their requirement. For fiber connectivity, UNISOL Fiber optic patch panels are designed to encounter industrial applications. There are three parts in the Fiber optic patch panel.

• The detachable front panel that includes, multiple types of fiber adapters that provide access to connect with the optoelectronic device.
• Another compartment that envelops, fiber optic splice for protection sleeves and space for excess fiber and pigtail routing.
• Din Rail base is the most important part which climbs/fixes the patch panel onto the 35mm Din Rail frame.

Construction

Unisol communications designed to construct the product based on their customer requirement. Here we are using some materials for construction.

• Robust steel/aluminum construction with seven tank process pretreatment and electrostatic spray technique powder coating, fabricated with our patch panels as well as an advanced manufacturing process.
• It provides the highest quantity for the protection of sensitive components inside the enclosure.
• It increases corrosion resistance for severe environmental conditions.
• Multi-port cable entries permit or allow greater flexibility for interconnecting essentially two units of outside plant distribution cables.
• The rugged PVC/metal DIN-Rail base secure actual and perfect mounting into the Din Rail frame and it has a load capacity of 5kg to 15kg.

The fiber optic patch panel is an integrated unit for fiber management. This equipment function is to fix and manage the fiber optic cables inside the box as well as provide protection. It is used to terminate the fiber optic cable and provide a connection to individual spliced fibers. Besides, fiber patch panels can create a secure environment for exposed fibers, housing connectors and splice units.

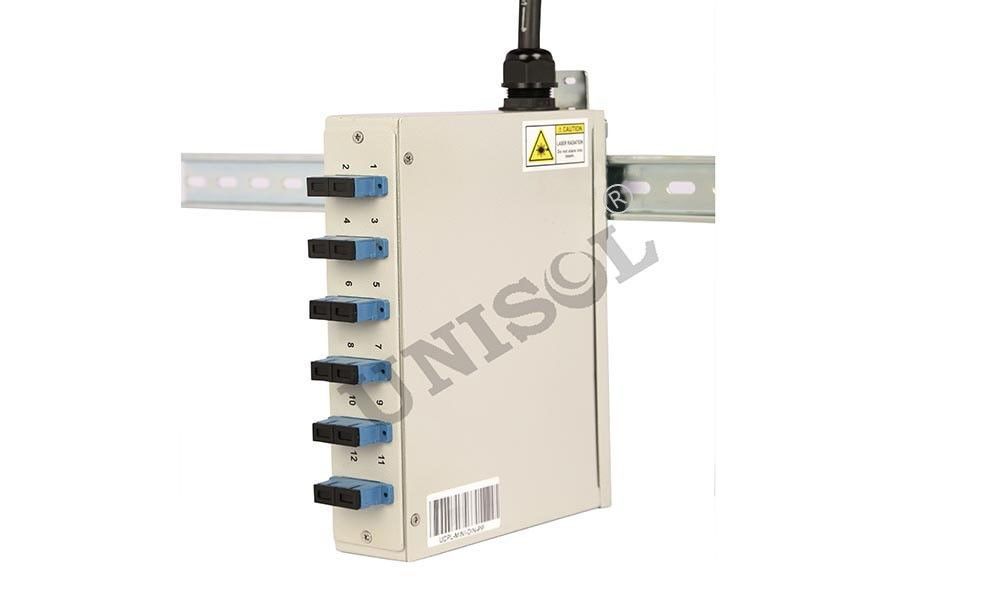

• Fiber optic patch panel which can mount on the standard 35mm Din rail frame is called Din rail patch panel. These patch panels are suitable for mounting Din rail panels where there are space constraints inside PLC’s. Din rail patch panel is compact and can mount in a cabinet with other Din rail equipment.
• Din rail mount enclosures are suitable to install in substation automation networks. Din rail patch panel is used to provide a maximum number of fiber connections in a minimal footprint.
• The industrial design makes it highly suited for use in Machine Building, Transportation, Alternative Power Generation, Power Transportation & Distribution, and Oil & Gas markets, as well as more general use in the enterprise, buildings, and other applications.
• Din rail patch panel used in CCTV traffic monitoring, toll systems and environmental monitoring equipment where these can secure in small wayside cabinet backplane or side panel. The patch panel can load with a variety of adapters like ST, SC, FC, and LC.
• The fiber patch panels that are designed to climb in a 19-inch rack frame to provide cross-connect and interconnect capabilities for splicing & terminating OFC cables, pigtails in fiber access network called Rack mount LIU.

Applications:

• Oil & Gas Industries
• CCTV & Surveillance Applications
• Rail Signalling & Control Applications
• Process Automation & Control Systems
• Power Systems & Controls

Features:

• Compact size perfect for limited space enclosures
• MS/Aluminum housing with 7 tank process powder coating
• Suitable for DIN-Rail and surface mount applications
• Replaceable panel for SC/ST/LC/FC type couplers
• Allow a maximum of 2 cables entry
• Patch or fusion splice field termination standard
• Splice holder for pigtail splicing
• Because of its compact and ruggedly designed case, it is suitable for industrial applications.
• Available with metal DIN-Rail mount for Industrial high-temperature conditions and applications
